Twin Tub Washing Machine CKD
RISEN supplies twin tub washers (CKD), air fryers, rice cookers, kettles, ovens, and other home electrical appliances in China. Risen devoted ourselves to the home appliances industry for many years, covering all countries and regions around the world. We are expecting to become your long team partner in China.
Model: RS-S80A3
Plastic/ Tempered Glass: Plastic
Capacity: 8.5kg
Dimension(mm): 820x450x960mm
Packing(mm): 855x490x985mm
Net Weight: 22 kg
40HQ Stuffing Qty: 174 sets
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
RISEN twin tub washing machine uses a pulsator with paddles to mix water and detergent together to wash your clothes in the most efficient way possible. One advantage of twin tub washers is that they typically use less water than regular washers, which helps save on costs and water supply. We can not only provide the finished twin tub washer but also supply a complete set of spare parts (CKD) for the twin tub washing machine, which can be assembled by yourself to save costs.
We have a wide selection at good prices to help you get creative. All the twin tub washer CKD are quality guaranteed. We are the original factory and supplier of twin tub washing machine CKD of China. If you are interested in our products, please feel free to contact us.
Technical Parameters
Model: RS-S80A3
Plastic/ Tempered Glass: Plastic
Capacity: 8.5kg
Dimension(mm): 820x450x960mm
Packing(mm): 855x490x985mm
Net Weight: 22 kg
40HQ Stuffing Qty: 174 sets

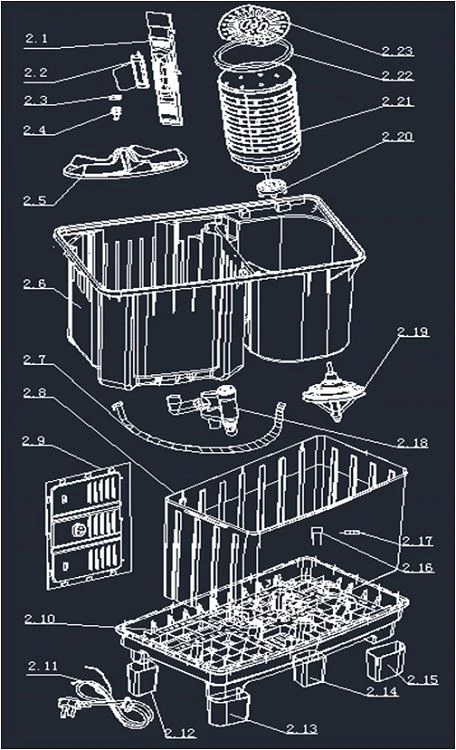

RISEN Professional Supply Whole Set Twin Tub Washing Machine CKD, Following is The Name Partially:
|
No. |
Part Name |
No. |
Part Name |
|
1.1 |
Knob |
2.1 |
Water level board |
|
1.2 |
Small control panel |
2.2 |
Filter bag |
|
1.3 |
Control panel |
2.3 |
Pulsator cover |
|
1.4 |
Water flow switch |
2.4 |
Bolt |
|
1.5 |
Wash timer |
2.5 |
Pulsator |
|
1.6 |
Hose connect wash and inlet |
2.6 |
Tub |
|
1.7 |
Filling pipe |
2.7 |
Drain hose |
|
1.8 |
Frame |
2.8 |
Body |
|
1.9 |
Wash cover frame |
2.9 |
Back cover |
|
1.10 |
Air drying cover |
2.10 |
Base |
|
1.11 |
Wash cover frame decorating |
2.11 |
Power line |
|
1.12 |
Belt |
2.12 |
Foot strap（back left） |
|
1.13 |
Motor fan |
2.13 |
Foot strap（front left） |
|
1.14 |
Bolt |
2.14 |
Foot strap（back right） |
|
1.15 |
Wash motor |
2.15 |
Foot strap（front right） |
|
1.16 |
Bottom gaket of motor |
2.16 |
Smoothing capacitor |
|
1.17 |
Nut |
2.17 |
Fuse protector |
|
1.18 |
Support shore |
2.18 |
Drain valve body |
|
1.19 |
Capacitor |
2.19 |
Gear box |
|
1.20 |
Upport spring component |
2.20 |
Water seal components |
|
1.21 |
Spin motor |
2.21 |
Spin tub |
|
1.22 |
Brake plate |
2.22 |
Balance ring |
|
1.23 |
Connector |
2.23 |
Clothes pressing board |
|
1.24 |
Spin cover frame decorating |
|
|
|
1.25 |
Spin cover frame |
|
|
|
1.26 |
Safe cover |
|
|
|
1.27 |
Semi-circle safety switch |
|
|
|
1.28 |
Cover torsional spring |
|
|
|
1.29 |
Pipe connect spin and inlet |
|
|
|
1.30 |
Drainage switch |
|
|
|
1.31 |
Spin timer |
|
|
|
1.32 |
Buzzer |
|
|
